Combined Devices for Combat Helmets

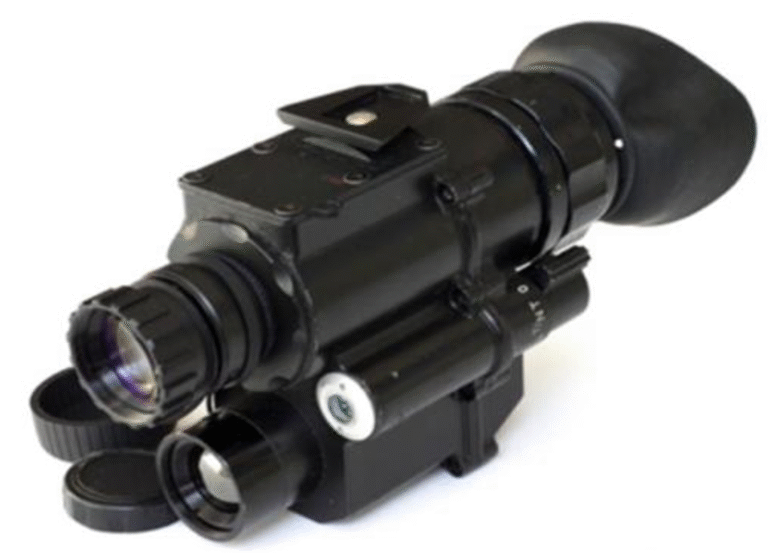

TN-KS/2
TN-KS/2 is combined observation system which includes I I T based night vision technology, microbolomether array thermal vision devices as well as the fusion-signal emulator, which allows to use benefits of both technologies in one device:
- Detection of the targets in any type of light or weather conditions
- Fast and easy identification procedure on closer ranges by requestiong details of the targets by visible signal
THERMAL VISION MODULE
Lens focus
15 mm
Optical magnification
1x
Field of view
23.5⁰ x 18.1⁰
Detection range of (human) type target
600 m
Recognition range of (human) type target
200 m
Matrix type
Uncooled bolometer
Resolution
384 x 288 pixels
Pixel size
17 mkm
Spectral range
8 - 12 mkm
Frame rate
25 Hz
NIGHT VISION CHANNEL
Lens focus
26.4 mm
Optical magnification
1x
IIT Generation
Generation 3 (With IIT Brightness Adjustment) / Generation 4
DISPLAY
Display type
OLED
Display resolution
800x600 pixels
Diopter adjustment
-2 - +2 diopters
SYSTEM PARAMETERS
Turn-on time
<5 sec
Battery type
4 x CR123 (or 2 x 18650)
Operation time
4 hours
Possibility to observe combined image of thermal and night vision channels
Yes
OTHER PARAMETERS
Operating temperatures range
-40⁰C.. + 50⁰C
Dimensions
190 x 66 x 91 mm
Splashes protection
IPx5
