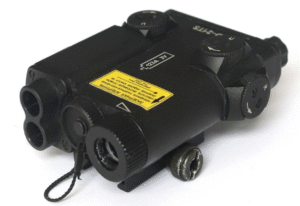

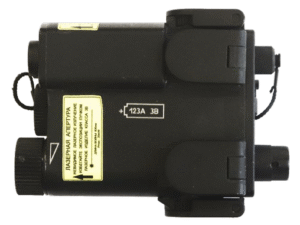

Laser Module
LAD-21T (TS)
- Visible (Red) and IR aiming channels, IR-Illuminator
- Small size and light weight
- Remote control button
- High and low power operation modes
LAD-21T (LAD-21TS) is a multipurpose laser aiming device designed for installation on different types of weapons (SMG, assault rifle, machine gun). Can be used for illumination and target designation during day and nighttime operations. Current version uses red-colored visible targetpointer.
LASER AIMING DEVICE
Laser safety class
3В
Laser wavelength (red/ IR / illuminator)
610-655 nm
810-860 nm
810-860 nm
Laser beam divergence (red/ IR / illuminator)
(0,4±0,2) mrad
2,8 - 105 mrad (10' - 6º)
Output emission power (red/ IR (H/L powermodes) / illuminator (H/L power modes))
Not less than 4,5 mW
Not less than 20 mW / not more than 1 mW
Not less than 25 mW / not more than 2 mW
Elevation and windage adjustment range
± 18 mrad (± 60MOA) – LAD-21T
± 20 mrad (± 1º10') – LAD-21TS
Click value
(0,5 ±0,1) mrad (50 mm at 100 m range)
SYSTEM PARAMETERS
Power supply
1 x CR123A, 3 V
GENERAL PARAMETERS
Operating temperature range
- 40 ºС …+50 ºС
Protection level
IP67
Mounting standard
Picatinny rail MIL-STD 1913
Impact load limit
300G
Overall dimensions
105×75×55 mm – LAD-21T
105 x 80 x 50 mm – LAD-21TS
Weight
0,35 kg
