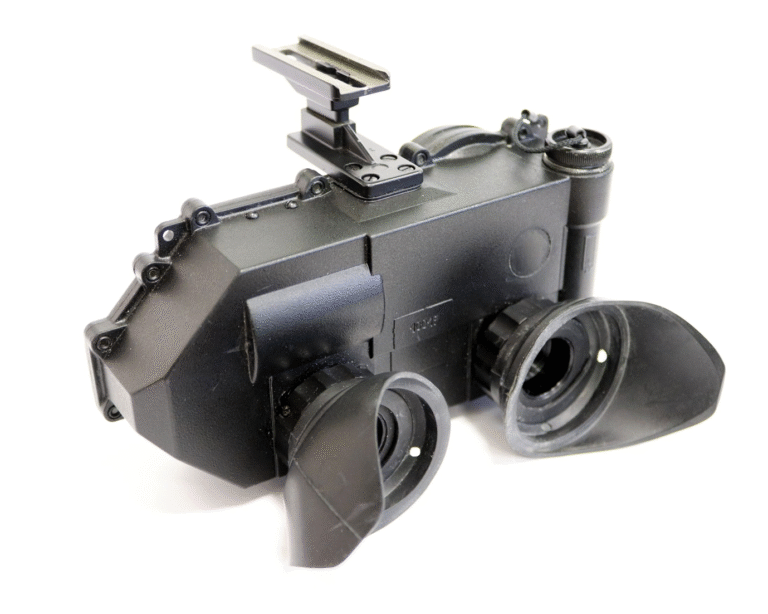

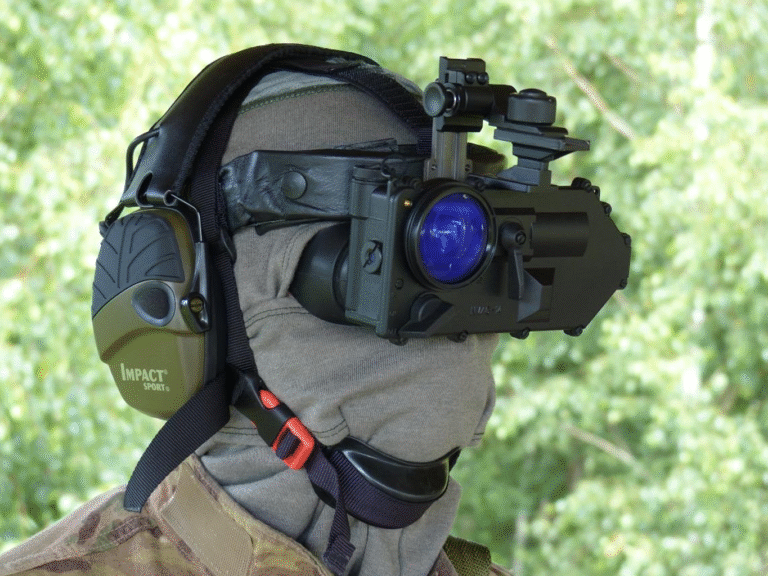

Night Vision Goggles
NV/G-14
- Flat design
- Small size and light weight
- Built-in IR-Illumintaion
- Bright source protection
The goggles are designated for observation and aiming under low illumination conditions and in complete darkness. The main advantage of the goggles – minimum length along optical axis and small weight which enable to decrease eye strain significantly during long period of operation, as well as special design which enables to aim by means of a red-dot sight.
NIGHT VISION CHANNEL
Image Intensifier
Gen.2+ / Gen.3
Detection range (human-type target)
300 m
Recognition Range (human-type target)
200 m
OBJECTIVE LENS
Optical Magnification
1x
Focusing Range
0,25 m …∞
F.O.V.
36⁰
Overall Dimension
157 х 98 х 86 mm
Weight
0.54 kg
SYSTEM PARAMETERS
Image Intensifier Life Time
10000 Hours
Continuous Operation Time (per 1 battery set)
> 28 Hours
Power supply
1 x AA (1,5V)
GENERAL PARAMETERS
Operating Temperature Range
-40 ˚С…+50 ˚С
Protection Level
IP67
Diopter adjustment range
-4…+4 dptr.
Interpupillary distance
66±1 mm
Integrated IR Illuminator
+
Light overload sensor
+
Warranty period
12 months
