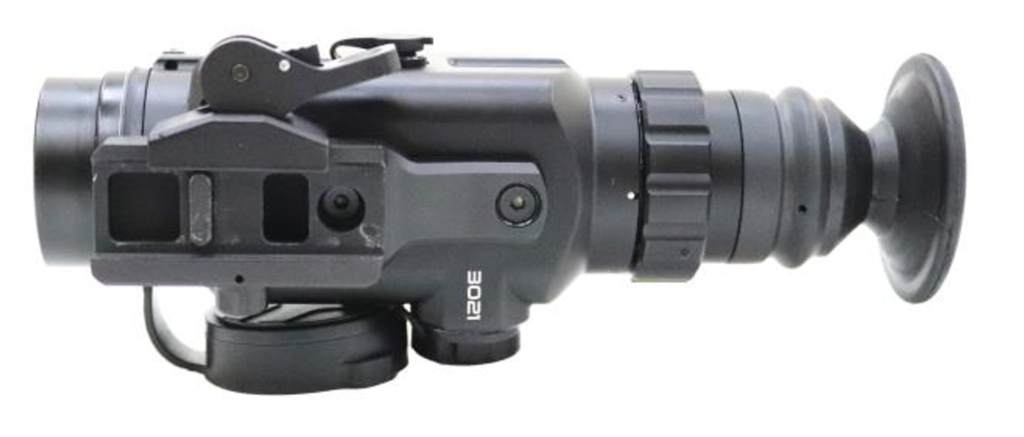

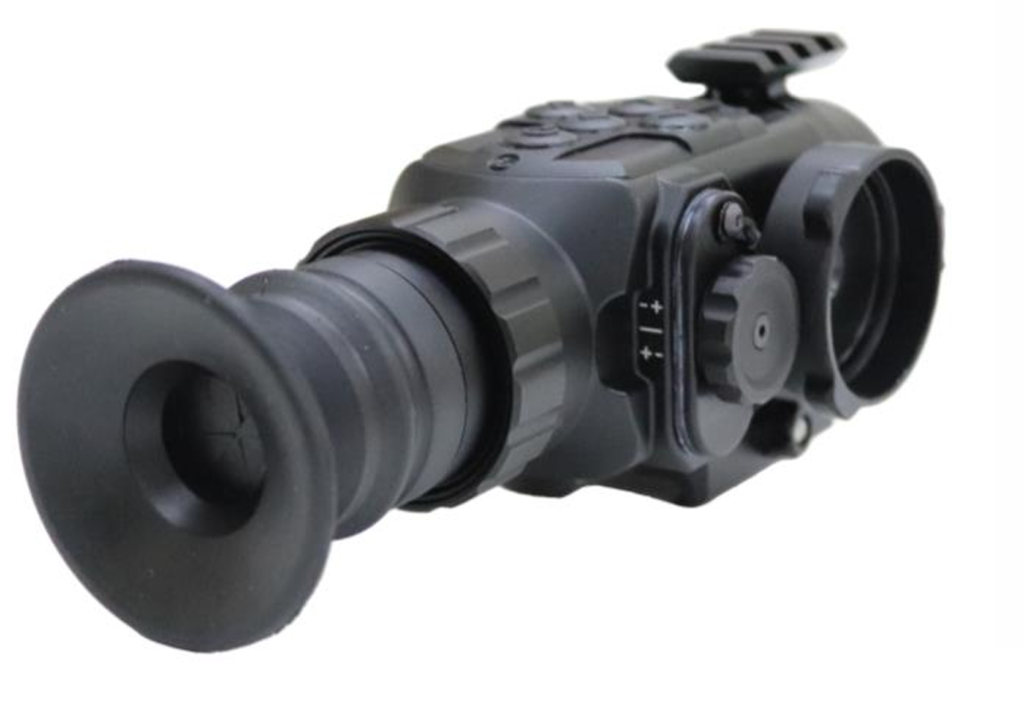

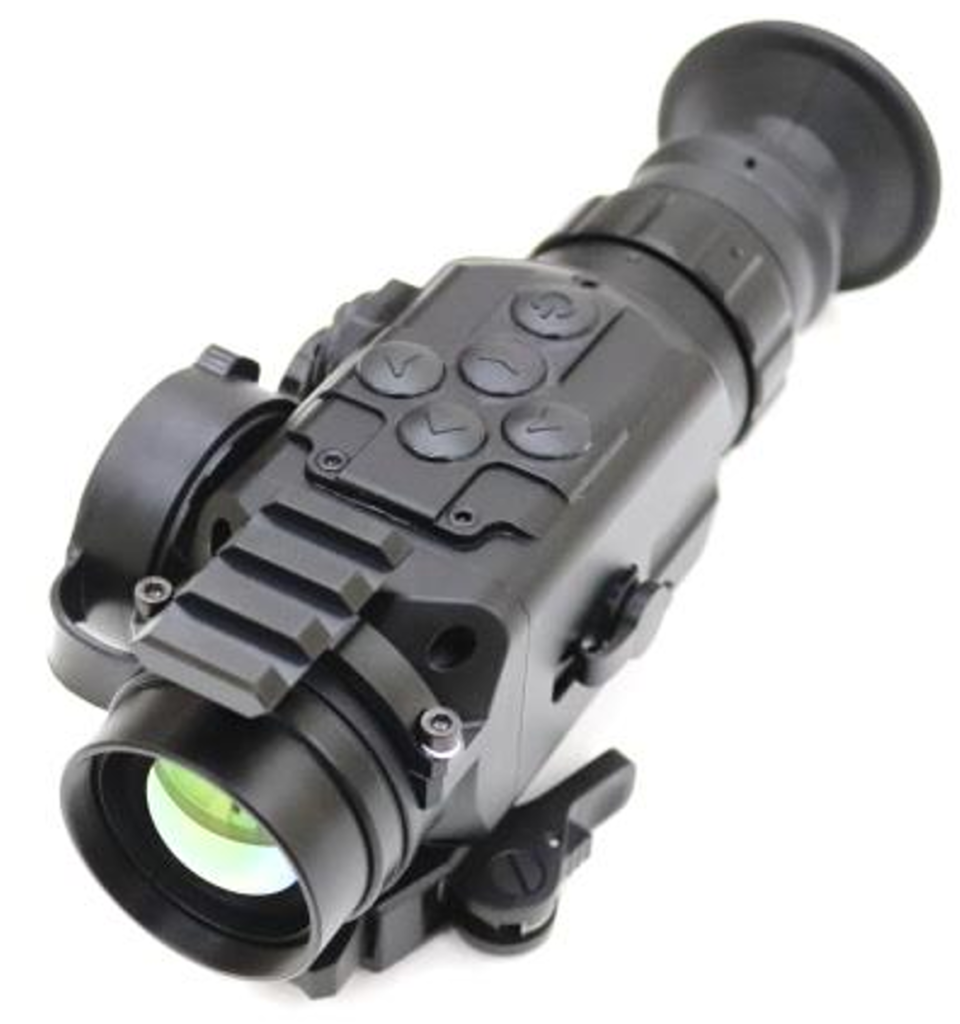

Thermal Vision Sight
TV/D-CL (CM)
- Autofocus (do not require manual adjusment);
- Customizable ballistic function presets
- Image/Video capture
- Compact overall dimensions & light weight
OPTICAL SYSTEM
Type of Sensor
640x512, 12 mkm
384x288, 12 mkm
Optical Magnification
2.1x
3.3x
F.O.V.
12.4°x10°
7.5°x5.6°
Digital Magnification
1x, 2x, 4x
1x, 2x, 4x
Detection Range (Target 1.7x0.5 m)
1400 m
1200 m
Recognition Range (Target 1.7x0.5 m)
450 m
400 m
THERMAL VISION MODULE
Type of Sensor
Uncooled microbolomether
Resolution
640x512
384x288
Pixel Size
12 mkm
12 mkm
Frequency Rate
50 Hz
50 Hz
DISPLAY
Type of Display
OLED
Resolution
1024x768
Diopter Adjusment Range
-4...+4 dptr.
SYSTEM PARAMETERS
Turn-on Time
10 seconds
Power Supply
2 x RCR -123 (16430)
GENERAL PARAMETERS
Operating Temperature Range
-20 °C...+ 55 °C
Overall Dimensions
150x68x78 mm
Weight
Not more than 0.65 kg
