Overview
Autonomous drone elimination on a single mobile platform.

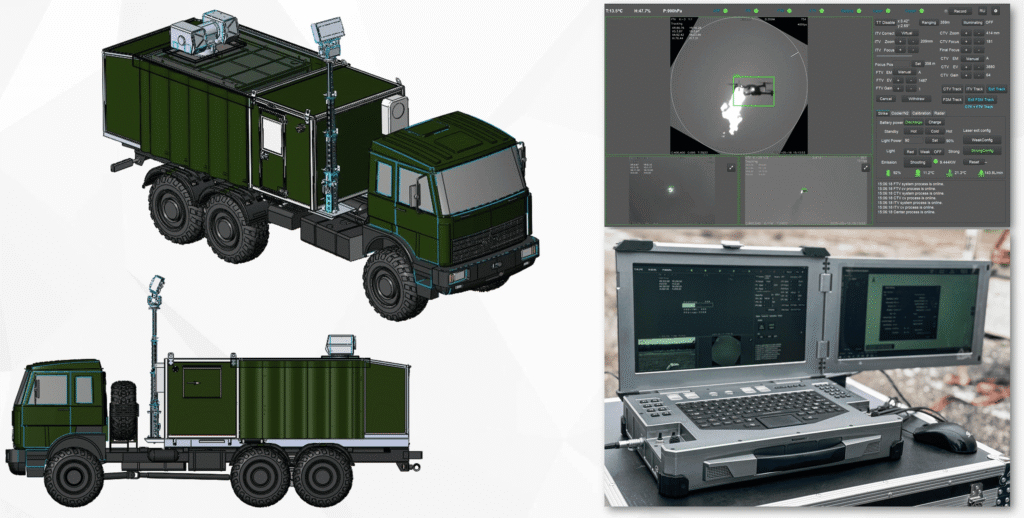

Fenix is a mobile counter-UAV laser complex delivering 10 kW of directed energy for autonomous drone elimination. Long-range surveillance, automatic tracking and high-power laser engagement are integrated on one mobile platform for rapid battlefield deployment.

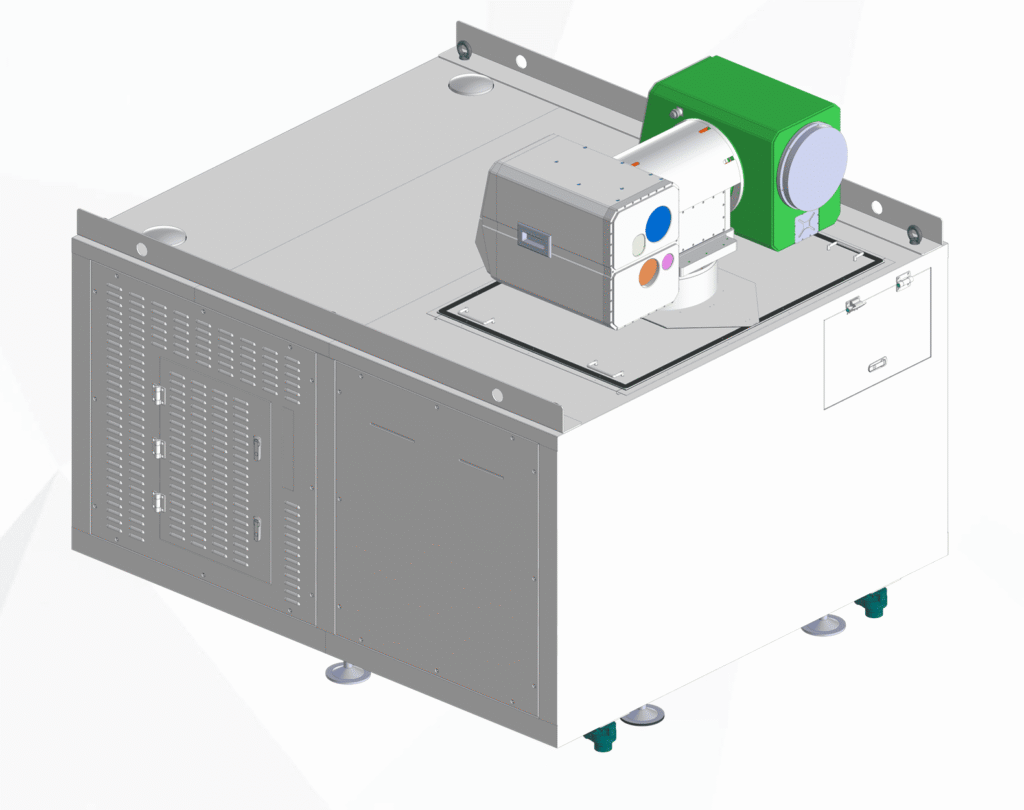

The modular design supports upgrades to higher laser power and advanced sensors, and the plug-in architecture allows quick installation on different vehicles – cutting set-up time and giving commanders instant protection of critical sites in dynamic environments.
Key benefits
- 10 kW high-power laser – effective drone elimination
- Long-range day and night surveillance system
- Automatic scanning and image stabilisation
- Auto-tracking: lock and engage targets in under 10 s
- Integrated X-band radar detection to 5,000 m
- Mobile platform – 30-minute deployment
- Scalable and future-ready modular design
Applications
10 kW
Laser output
1,500 m
Strike range
5,000 m
Radar detection
360°
Coverage
< 10 s
Time to strike
24/7
Day / night
Technical specifications
Laser weapon
| Wavelength | 1.06 – 1.08 µm |
| Maximum output power | 10 kW* |
| Power consumption | 35 kW, single phase |
| Laser spot at 500 m / 1,000 m | 30 mm / 60 mm |
| UAV damage range | 500 – 1,500 m |
| Time to hit UAV target | < 10 s |
| Continuous operation | 120 s (4 x 30 s, 10 s pause) |
| Battery charging time | 40 min |
| Operating temperature | -20 °C … +50 °C |

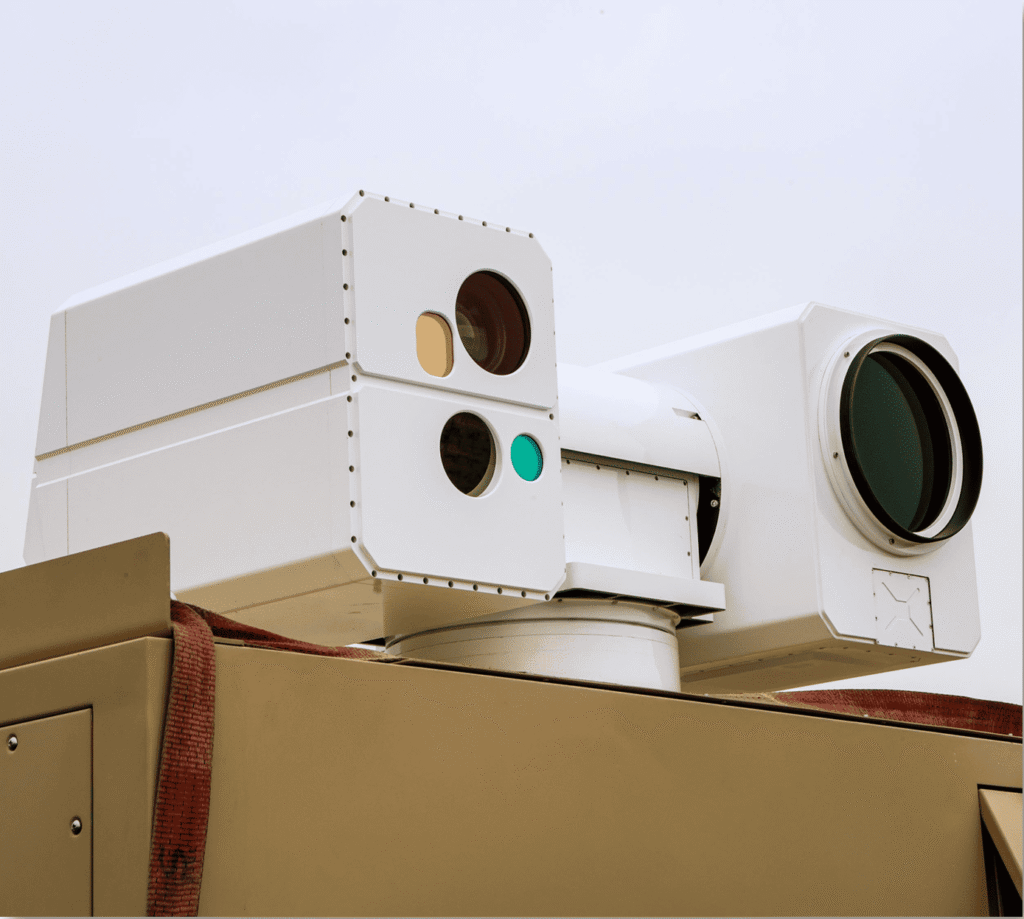

Optics block
| TV camera resolution | 1920 x 1280 |
| Thermal sensor (cooled) | 612 x 512 |
| IR illuminator | Included |
| Laser rangefinder | Az: N x 360° · Tilt: -10° / +80° |
| DJI Mavic detection | 4,500 m |
| Maximum tracking velocity | 2.5°/s |
| Surveillance range | 0.5 – 1,500 m |
Radar
| Frequency range | X-band |
| Maximum scanning range | 5,000 m |
| Small target detection (DJI Mavic) | 4,500 m |
| Simultaneous targets | 50 |
| Turntable rotation | 1 rev / 2 s |
| Maximum mast extension | ≤ 3 m |
| Control interface | Ethernet |

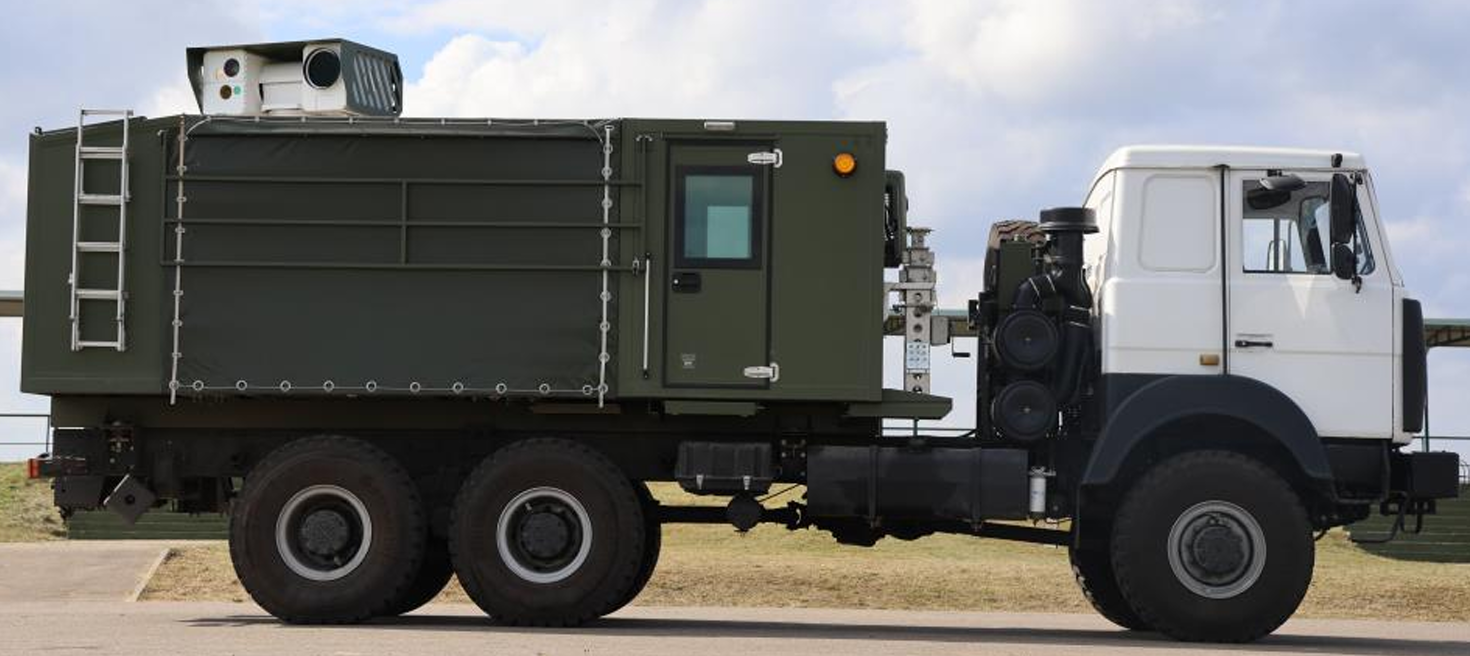

Chassis & general
| Travel speed (public road / dirt / off-road) | 80 / 30 / 5 km/h |
| Power reserve (MAZ) | 300 km |
| Transport dimensions | 9,330 x 2,744 x 3,860 mm |
| Working dimensions | 9,330 x 2,744 x 5,212 mm |
| Mass | ≤ 25,000 kg |
| Crew | 3 (driver + 2 operators) |
| Deployment time | 30 min |
* Higher-power lasers are currently being developed by optimising size and power-consumption parameters.
Research and development
Fiber laser R&D laboratory
Inside EGI Optik Indonesia’s laser laboratory, engineers conduct research and development on high-power fiber lasers – the foundation of next-generation directed-energy platforms such as the Laser Weapon System and Fenix.
