Overview
Own the night with Gen 4 image intensification.

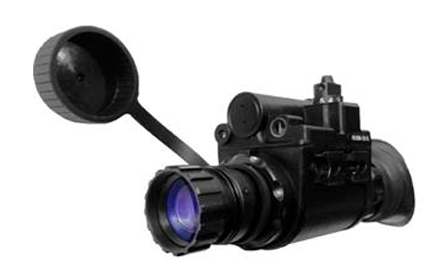

The NV/M-19 is a Gen 4 image-intensifier night monocular engineered for surveillance and terrain orientation, and for aimed fire when paired with a laser designator or collimator sight under natural low-light conditions.

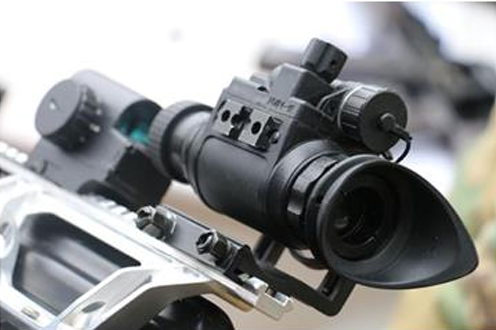

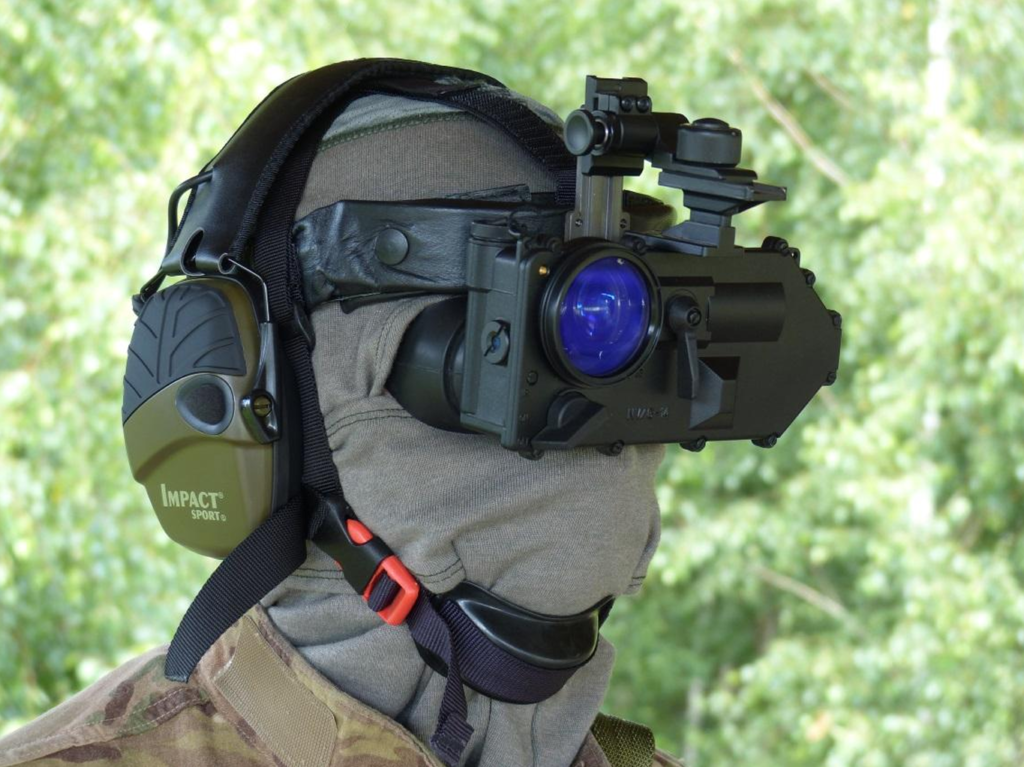

Optimised for 5.45 mm and 7.62 mm calibre service weapons, it combines a wide 40° field of view with a 10,000-hour tube life, built-in IR illumination and automatic flash-glare protection for sustained tactical operations – on a helmet mount, hand-held or on the weapon.
Key benefits
- Gen 4 image-intensifier tube with black-and-white screen
- Wide 40° field of view for situational awareness
- 10,000-hour tube service life
- Built-in IR illumination for total darkness
- Automatic flash-glare protection
- Weapon mounts for 5.45 and 7.62 mm rifles
Applications
Gen 4
Image intensifier
40°
Field of view
10,000 h
Tube life
0.25 m-∞
Focus range
0.36 kg
Weight
1x AA
Power source
Technical specifications
Image intensifier tube
| Screen type | Black-and-white glow |
| Focus range | 0.25 m – ∞ |
| Field of view | 40° ± 1° |
| IIT service life | 10,000 hours |
| Diopter adjustment | -6 … +2 dptr |
System
| Power source | 1 x AA, 1.5 V |
| Operating temperature | -10 °C … +50 °C |
| Built-in IR illumination | Yes |
| Automatic flash-glare protection | Yes |
| Low-battery sensor | Yes |
| Overall dimensions | ≤ 166 x 52 x 76 mm |
| Weight | ≤ 0.36 kg |
| Weapon compatibility | 5.45 mm and 7.62 mm |
Also available

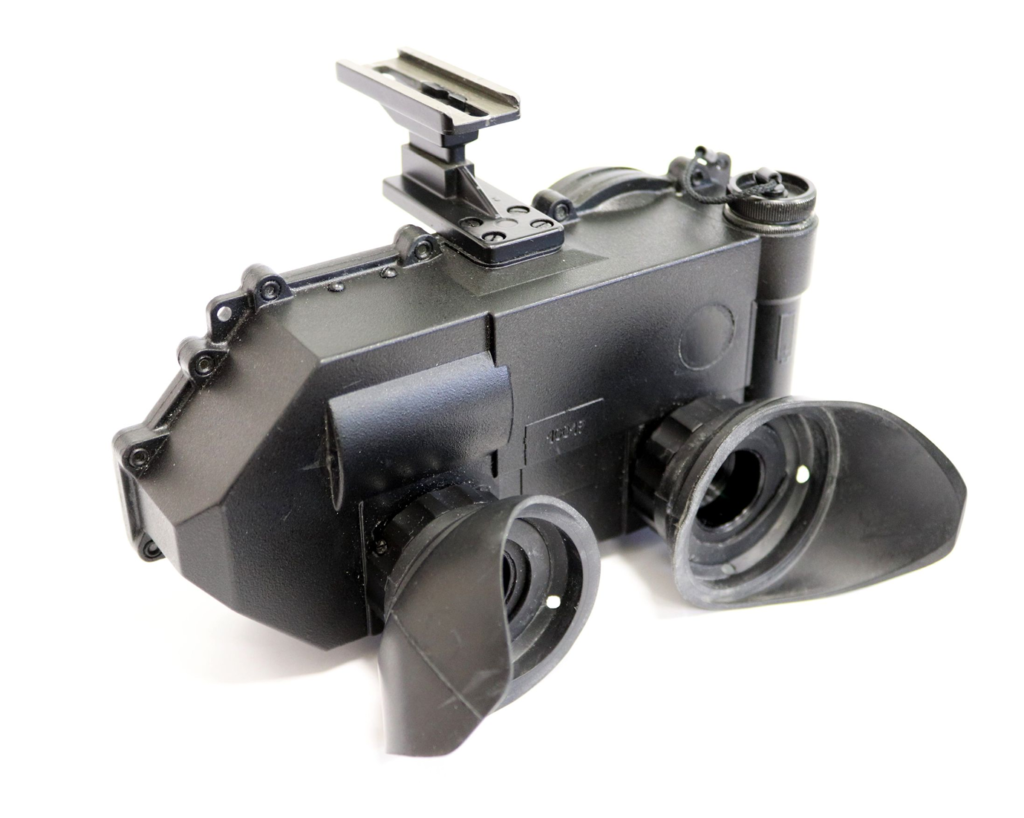

NV/G-14 night vision goggles
Binocular goggles designated for observation and aiming under low illumination and in complete darkness. Their main advantage is the minimum length along the optical axis and low weight, which significantly reduces eye strain during long operations, together with a design that allows aiming through a red-dot sight.
- Flat, compact design
- Small size and light weight – 0.54 kg
- Built-in IR illumination
- Bright-source protection
- IP67 · > 28 hours on one AA battery
NV/G-14 optics
| Image intensifier | Gen 2+ / Gen 3 |
| Detection range (human-type target) | 300 m |
| Recognition range (human-type target) | 200 m |
| Optical magnification | 1x |
| Focusing range | 0.25 m … ∞ |
| Field of view | 36° |
| Diopter adjustment | -4 … +4 dptr |
| Interpupillary distance | 66 ± 1 mm |
NV/G-14 system
| Overall dimensions | 157 x 98 x 86 mm |
| Weight | 0.54 kg |
| Image intensifier life time | 10,000 hours |
| Continuous operation (one battery set) | > 28 hours |
| Power supply | 1 x AA, 1.5 V |
| Operating temperature | -40 °C … +50 °C |
| Protection level | IP67 |
| Warranty period | 12 months |
NVG transition test
Clean room to dark room transition
Demonstration of the Gen 4 image-intensifier tube’s rapid auto-gating and exposure adjustment when moving from a brightly lit clean room into complete darkness – continuous situational awareness without blinding the operator.
