Overview
See first, decide first – day or night.

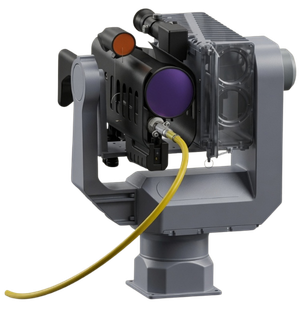

An advanced electro-optical surveillance platform capable of detecting and identifying aerial threats at distances exceeding 8,000 metres. Full HD imaging with an ultra-low-light channel delivers 24/7 situational awareness in the most demanding operational environments.
The unit is remotely controlled from inside the vehicle and integrates with the Fenix complex as an early-warning sensor, or operates standalone on armoured vehicles, masts and fixed sites.
Key benefits
- Full HD 1920 x 1080 real-time imaging at 25 fps
- 30x optical zoom plus 12x digital zoom
- Ultra-low-light channel for night operations
- Drone detection up to 8,000 m
- Integrated laser rangefinder

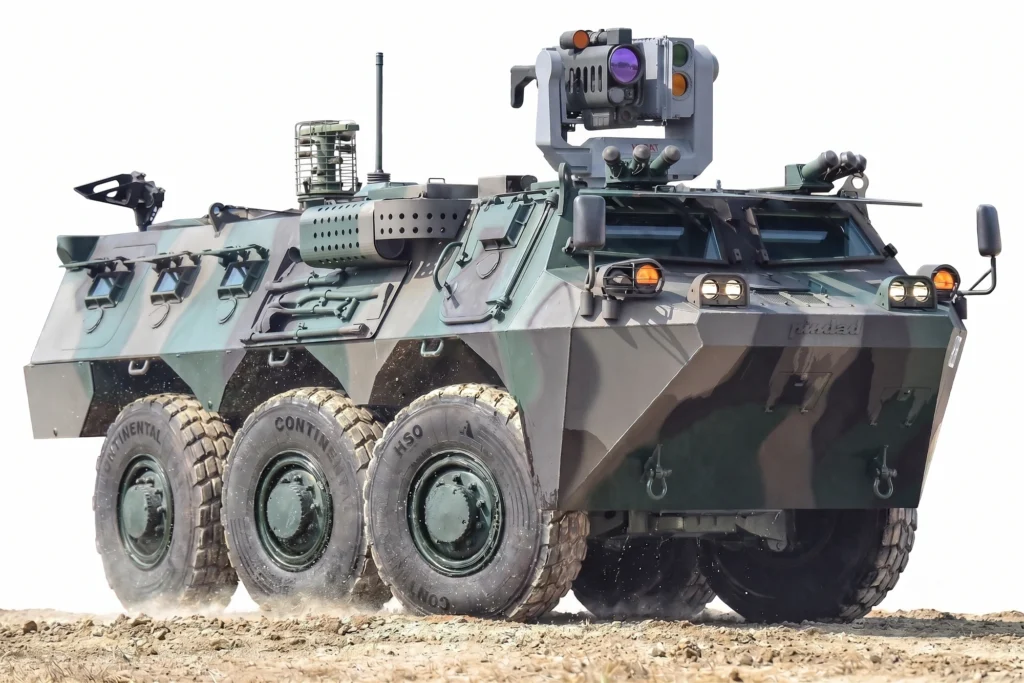

- Vehicle integration proven on the Pindad Anoa 6×6
Applications
1080p
Full HD resolution
30x
Optical zoom
12x
Digital zoom
58.1°
Wide field of view
25 fps
Frame rate
6.5-162.5 mm
Focal length
Technical specifications
TV channel
| Sensor resolution | 1920 x 1080 (Full HD) |
| Frame rate | 25 fps |
| Focal length | 6.5 – 162.5 mm |
| Optical / digital zoom | 30x / 12x |
| Wide horizontal FOV | 58.1° |
| Narrow horizontal FOV | 2.3° ± 10 % |
Low-light channel
| Channel type | Ultra-low-light |
| Horizontal FOV | < 14° |
| Rangefinder | Integrated laser rangefinder |
| Control | Remote, from inside the vehicle |
| Platform integration | Pindad Anoa 6×6 APC, masts, fixed sites |
Detection and recognition ranges
TV channel (maximum focal length)
| Drone | Detection | Recognition |
|---|---|---|
| DJI Mavic Pro | < 3,000 m | < 1,000 m |
| DJI Phantom 3/4 | < 5,000 m | < 2,000 m |
| DJI Matrice 600 | < 8,000 m | < 3,100 m |
Ultra-low-light channel
| Drone | Detection | Recognition |
|---|---|---|
| DJI Mavic Pro | < 600 m | < 200 m |
| DJI Phantom 3/4 | < 1,100 m | < 400 m |
| DJI Matrice 600 | < 1,800 m | < 700 m |
Narrow horizontal FOV (TV channel): 2.3° ± 10 % · Ultra-low-light horizontal FOV: < 14°.
