Overview
Designate and illuminate – visible by day, covert by night.

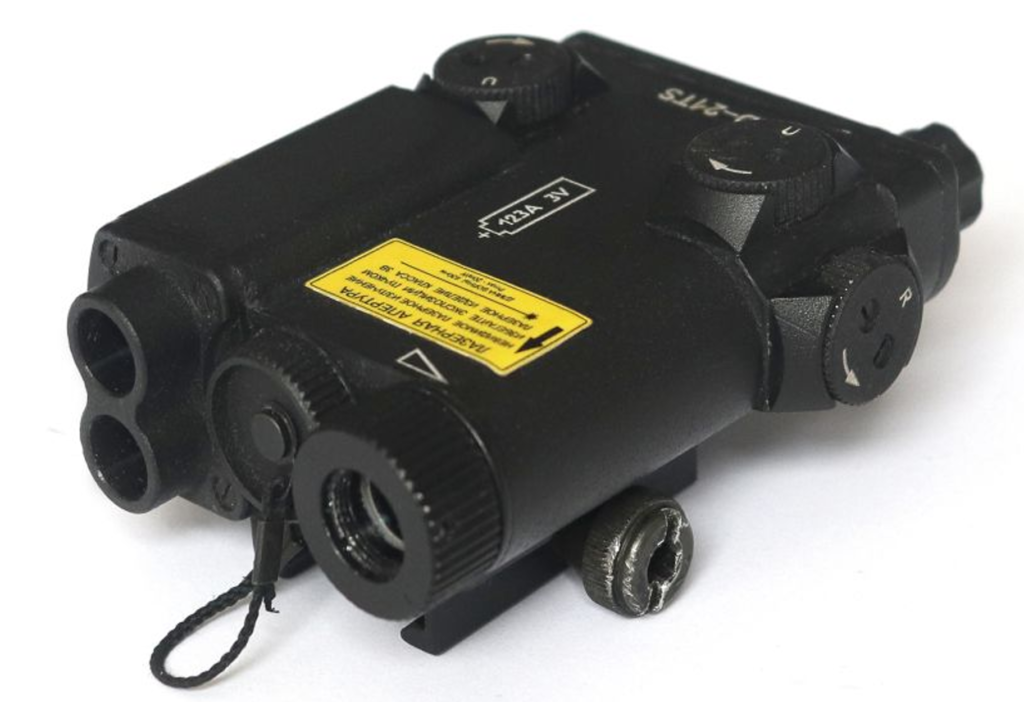

The LAD-21T (and the LAD-21TS variant) is a multipurpose laser aiming device designed for installation on different types of weapons: SMGs, assault rifles and machine guns. It provides illumination and target designation during day and night operations.
The current version combines a visible red target pointer with an infrared channel and IR illuminator for tactical concealment, selectable between high and low power modes, with a remote control button for silent activation.
Key benefits
- Visible (red) and IR aiming channels plus IR illuminator
- Compact and lightweight – 0.35 kg
- Remote control button for silent activation
- High and low output power modes

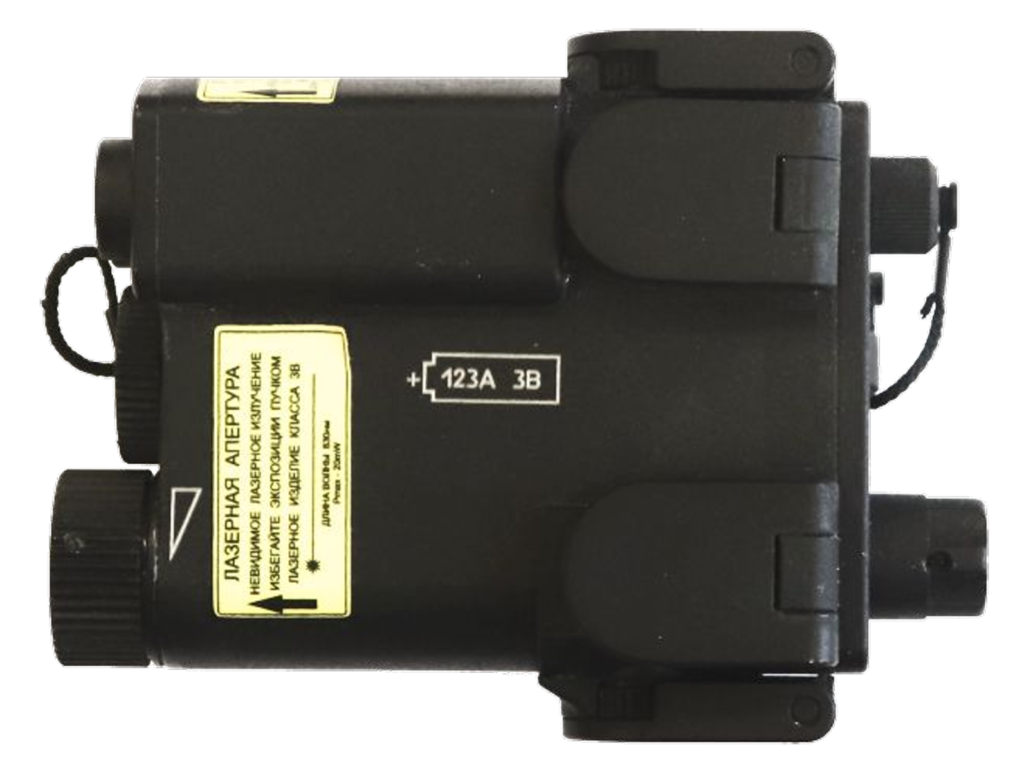

- Picatinny rail MIL-STD 1913 mounting
- IP67 sealed, 300 G shock rated
Applications
Class 3B
Laser safety class
0.35 kg
Weight
IP67
Ingress protection
300 G
Shock limit
-40…+50 °C
Operating temperature
1x CR123A
Power supply
Technical specifications
Laser sight
| Laser safety class | 3B |
| Wavelength (red) | 610 – 655 nm |
| Wavelength (IR / illuminator) | 810 – 860 nm |
| Beam divergence (red) | 0.4 ± 0.2 mrad |
| Beam divergence (IR / illuminator) | 2.8 – 105 mrad (10′ – 6°) |
| Output power (red) | ≥ 4.5 mW |
| Output power (IR, high / low) | ≥ 20 mW / ≤ 1 mW |
| Output power (illuminator, high / low) | ≥ 25 mW / ≤ 2 mW |
| Elevation and windage adjustment (LAD-21T) | ± 18 mrad (± 60 MOA) |
| Elevation and windage adjustment (LAD-21TS) | ± 20 mrad (± 1°10′) |
| Click value | 0.5 ± 0.1 mrad (50 mm at 100 m) |
System
| Power supply | 1 x CR123A, 3 V |
| Operating temperature | -40 °C … +50 °C |
| Ingress protection | IP67 |
| Mounting standard | Picatinny rail MIL-STD 1913 |
| Impact load limit | 300 G |
| Dimensions (LAD-21T) | 105 x 75 x 55 mm |
| Dimensions (LAD-21TS) | 105 x 80 x 50 mm |
| Weight | 0.35 kg |
